eGauge Core Wifi

eGauge Core Wifi

R 16,300.00
R 16,300.00
Sale Sold out

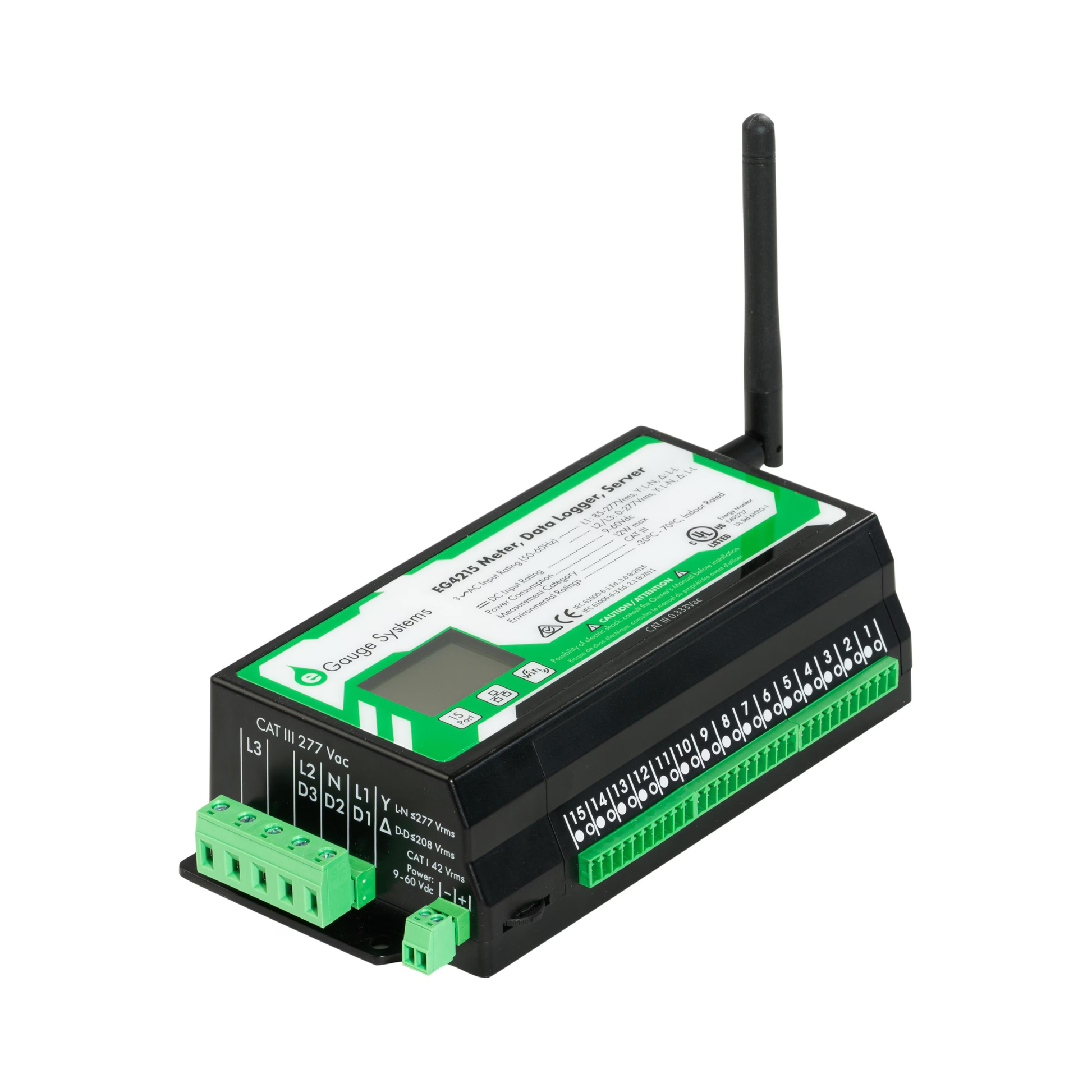

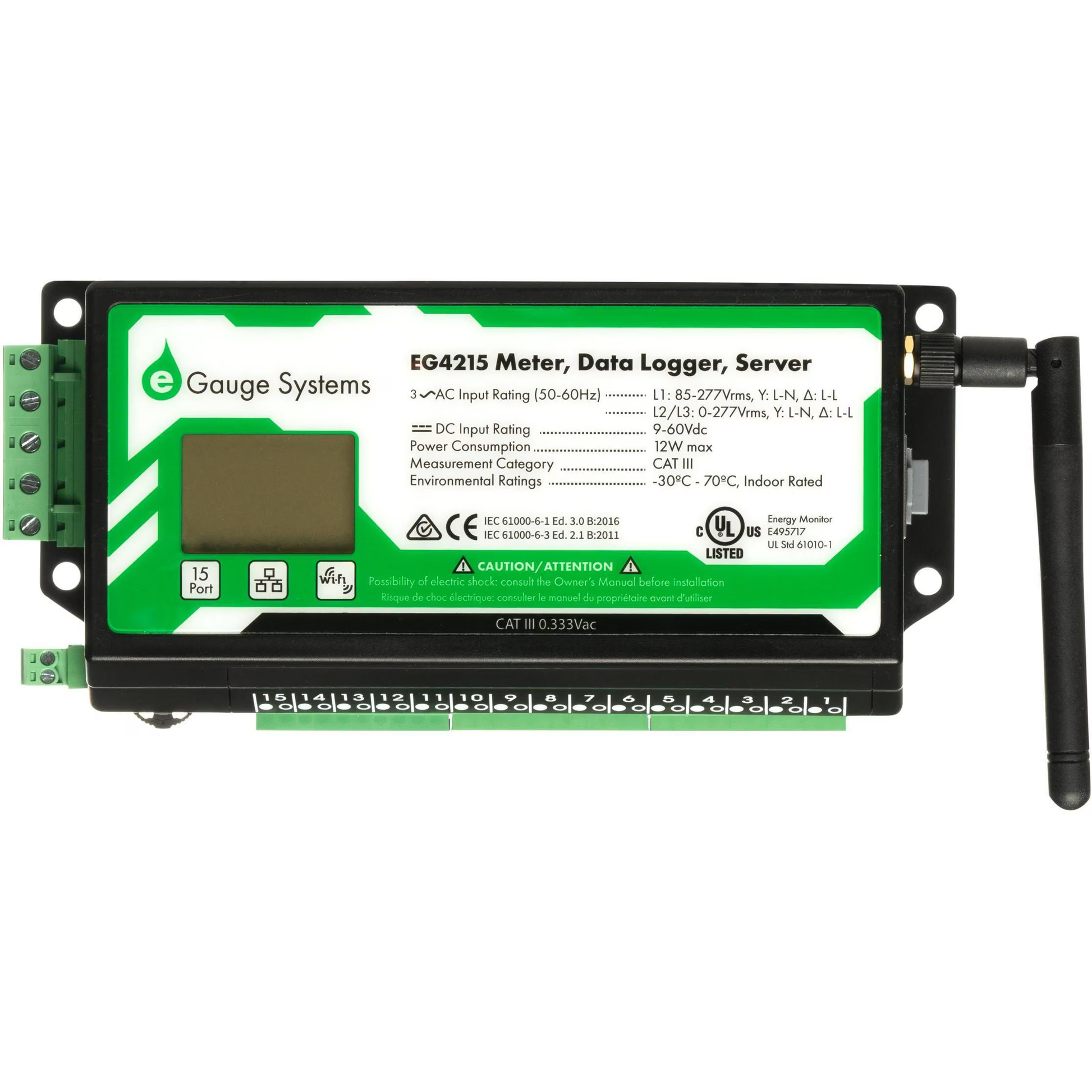

The eGauge Core WiFi is a 3-in-1 (meter, data logger, and web server), 15 channel multi-circuit smart energy meter designed for high accuracy energy monitoring applications. It is natively compatible with up to 3-phase 277/480 Vac and 6900 A (higher voltages with optional voltage sensors).

View full details

More information

Details

The eGauge Core WiFi is a 3-in-1 device (metre, data logger, and web server), featuring 15 channels for multi-circuit smart energy monitoring. It is designed for high-accuracy energy measurement applications and is natively compatible with up to 3-phase 277/480 Vac and 6900 A (higher voltages supported via optional voltage sensors).


Each unit functions as its own data logger, storing up to 64 data points for the lifetime of the hardware. Users can access data as granular as 1-second intervals for the most recent hour of logging. The built-in web server allows access to the interface via the internet or a local area network.


Access your meter data (at no additional cost) through the user interface, or integrate with other systems via Modbus (RTU or TCP), BACnet (IP or MS/TP), and web-based JSON and XML API protocols. Additionally, the eGauge metre can read and log data from remote Modbus RTU and TCP devices.

Features

  • 2.4 GHz WiFi with external antenna
  • Measures electric AC or DC power on up to 15 circuits

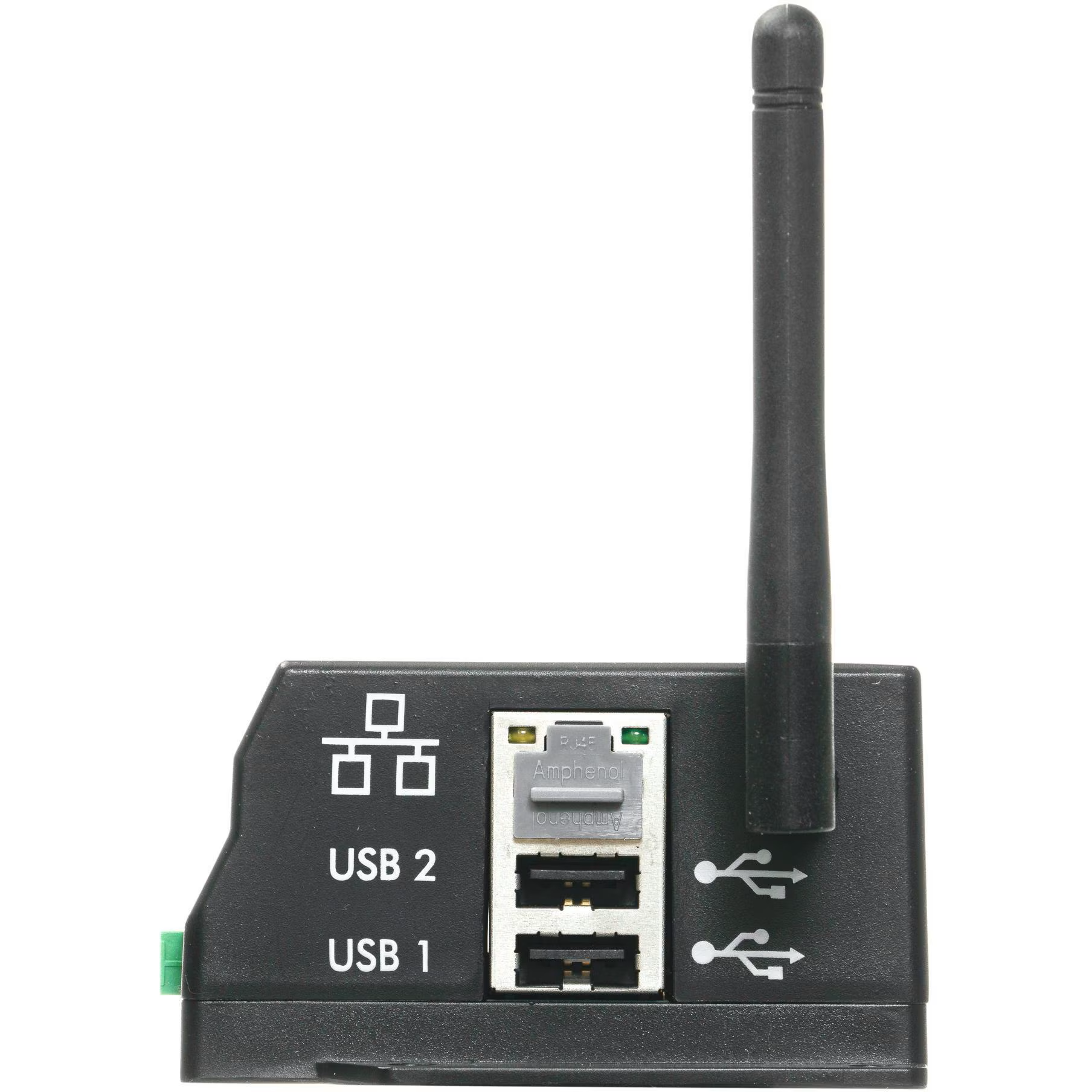

  • 2 USB inputs
  • LCD screen
  • DC voltage port

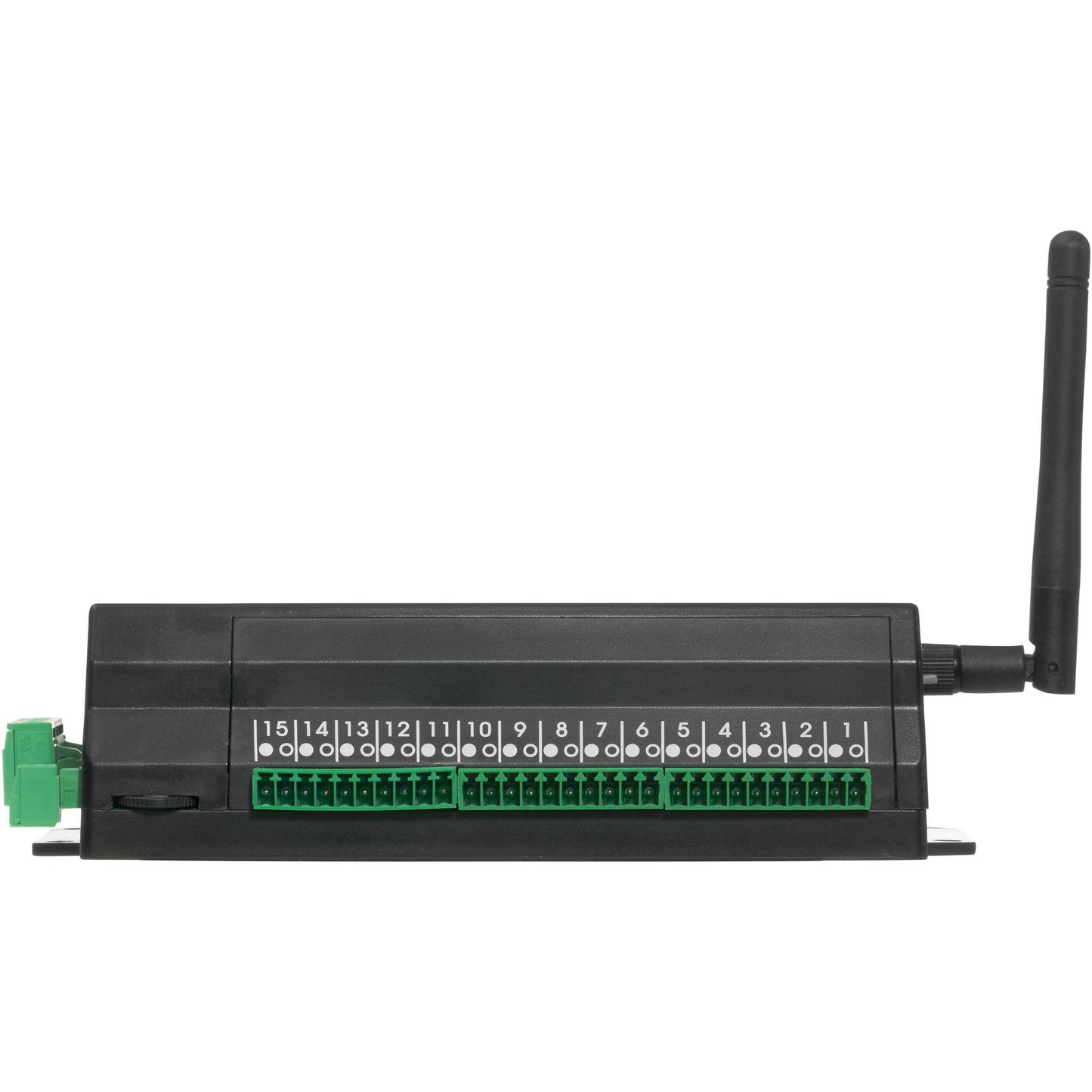

  • 15 sensor inputs
  • Built-in Ethernet
  • WiFi and cellular communication (using additional hardware)
  • Building demand/consumption recording
  • Renewable energy production (e.g., PV solar, wind)
  • Individual appliances, such as geothermal pumps, HVAC, refrigerator
  • Supports wide range of current transformers (CTs) to accommodate virtually any size load
  • Built-in web server
  • Fully web-configurable
  • Built-in solid-state memory
  • Product lifetime data storage
  • Internet-enabled but can also operate autonomously without internet connection
  • Free lifetime firmware upgrades
  • No service contracts
  • No batteries
  • Compatible with Windows, Mac, Linux, and smartphones
  • Suitable for residential, commercial, municipal, and industrial use
  • BACnet IP and MS/TP compatible
  • Modbus RTU and TCP compatible
  • FCC and UL-61010 compliant
  • Lead-free and RoHS compliant
  • Made in the USA

Measurement

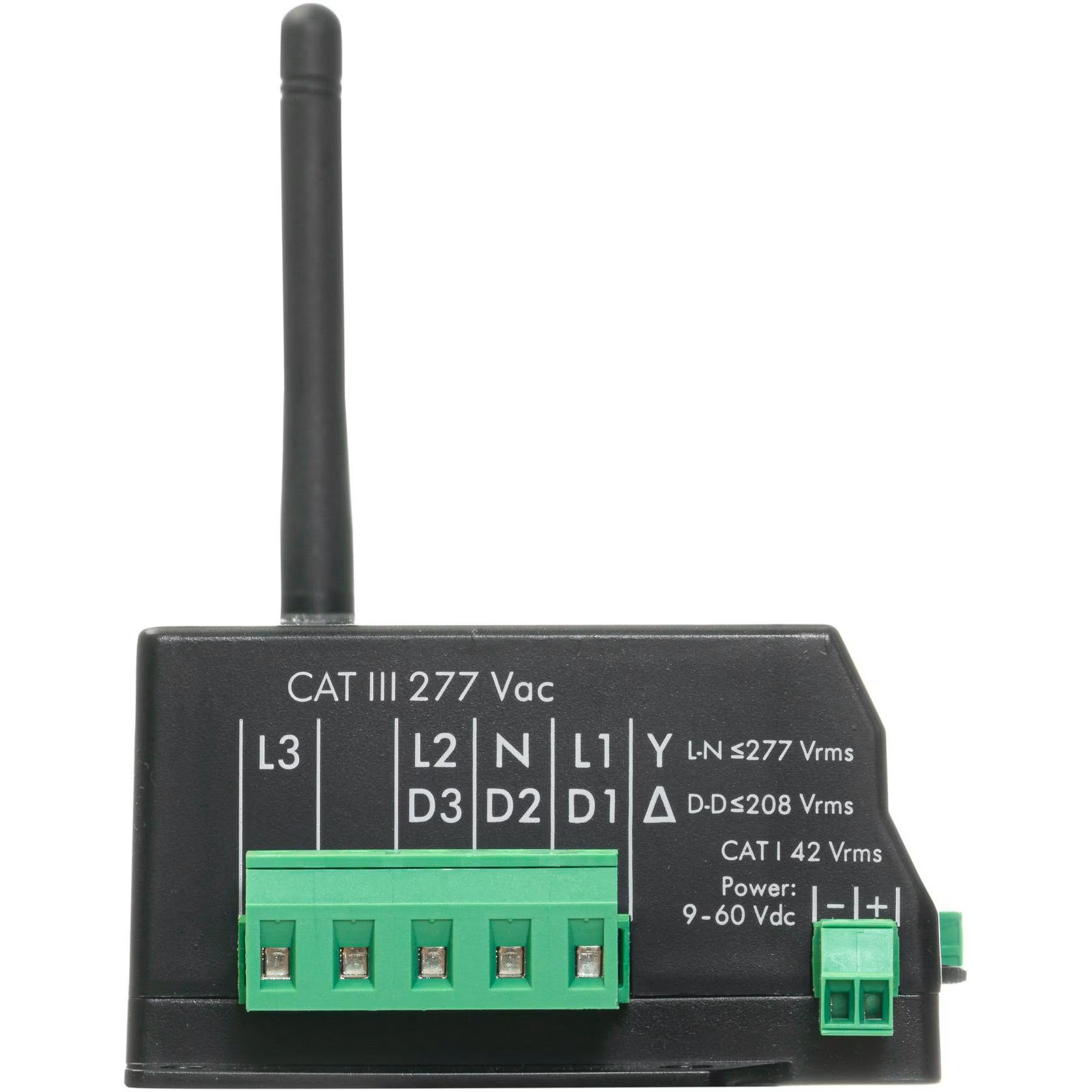

AC Voltage
L1: 85–277 Vrms
L2: 0–277 Vrms
L3: 0–277 Vrms

DC Voltage
42 Vrms
Power: 9–60 Vdc
Measurement: ±60 Vdc

Current
15 channels
5–6900 A max per channel
Isolated inputs

Frequency
50 or 60 Hz

Logging Values
V, A, W, Wh, Hz, VA, VAr, THD, deg

Power Draw
12 W max, 2 W typical

Environmental

Operating Temperature
–30 to 70 °C (–22 to 158 °F)

Max Altitude
4000 m (13,123 ft)

Max Humidity
80% up to 31 °C

Measurement Category
Overvoltage Category III

Location
Open type indoor device

Pollution Degree
2

Data Logger Capacity

Register Count
64 (data storage points)

Granularity (duration/avg)

1 hour / 1 second

1 year / 1 minute

10 years / 15 minutes

Device lifetime / 1 day

Safety and Regulatory

Safety
IEC/UL 61010-1 Ed. 3.0 B:2010

CE
IEC 61000-6-1 Ed. 3.0 B:2016
IEC 61000-6-3 Ed. 2.1 B:2011

FCC
FCC Title 47 CFR Part 15 – Subpart B Class B

ICES
ICES-003 Information Technology Equipment Class B

Communication

Ethernet
IEEE 802.3 – LAN

Wireless
IEEE 802.11n/b/g 2.4 GHz

User Interface

Compatible Browsers
Recent versions of:
– Google Chrome
– Firefox
– Safari
– Internet Explorer

Enclosure

Material
FRABS

Dimensions
17 × 8 × 4.6 cm
(6.7 × 3.15 × 1.81 in)

Weight
293 g (0.64 lbs)

Warranty

Standard
2 years

Extended
5 years
