eGauge Pro

eGauge Pro

R 23,580.00
R 23,580.00
Sale Sold out

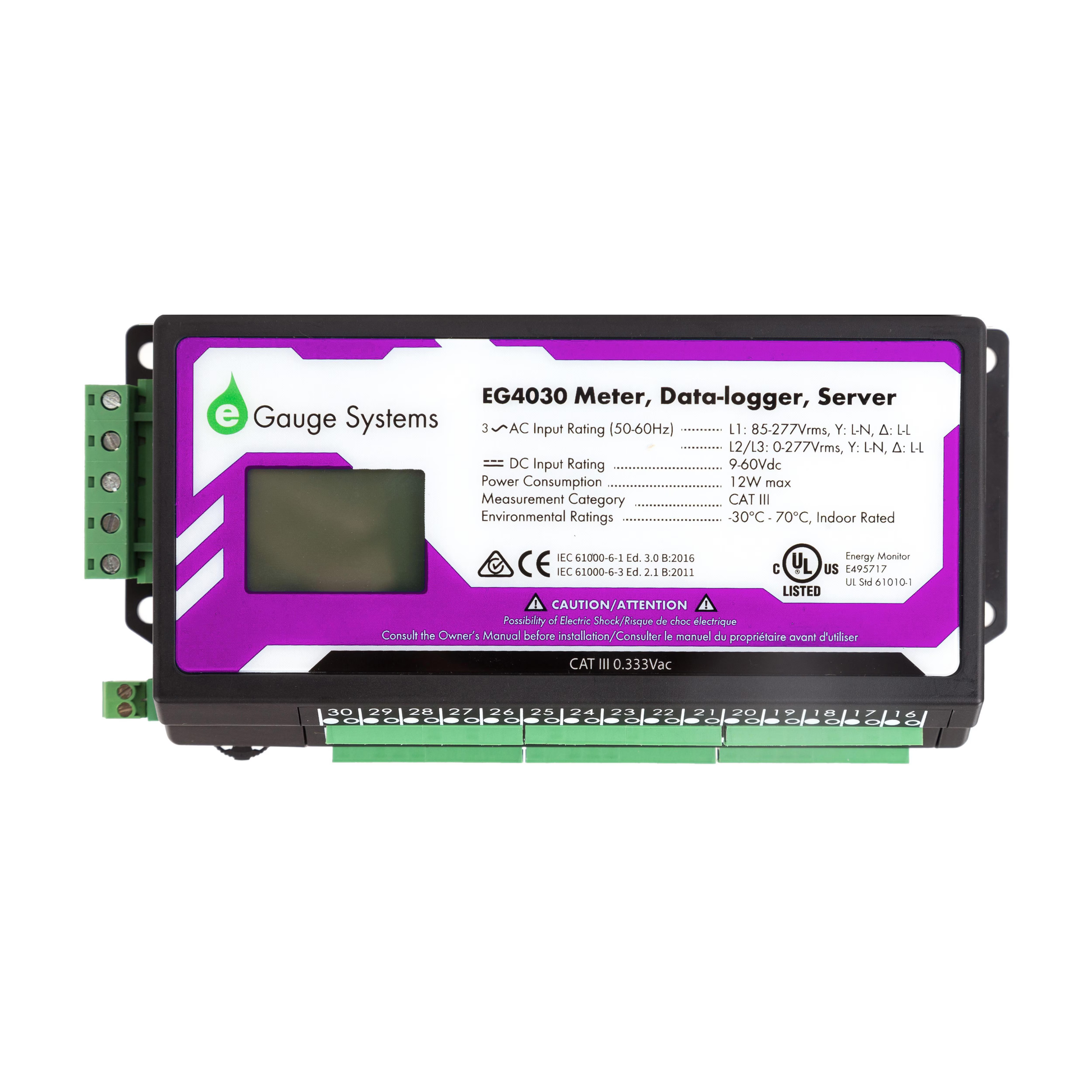

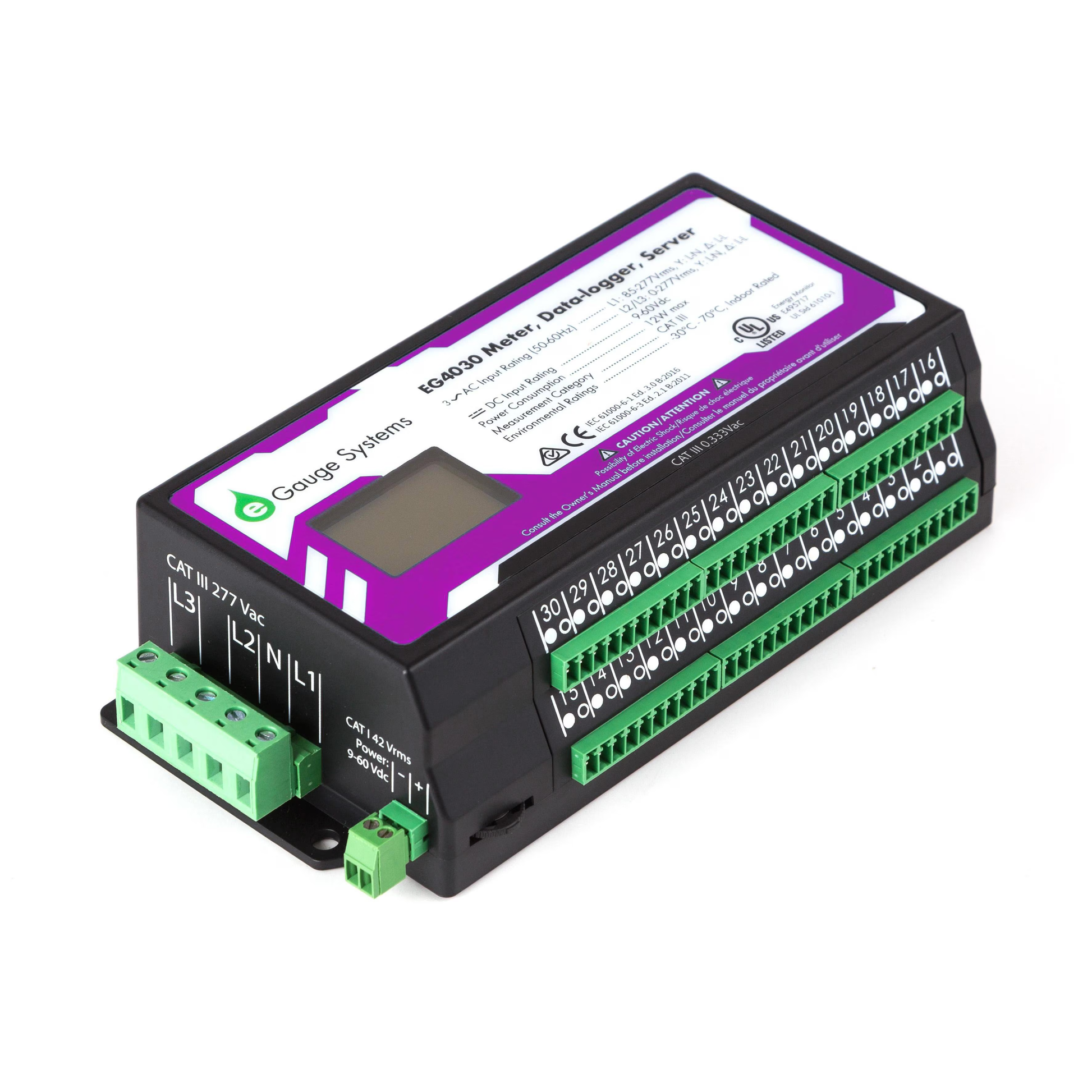

The eGauge Pro is a 3-in-1 (meter, data logger, and web server), 30 channel multi-circuit smart energy meter designed for high accuracy energy monitoring applications. It is natively compatible with up to 3-phase 277/480 Vac and 6900 A (higher voltages with optional voltage sensors).

View full details

More information

Details

The eGauge Pro is a 3-in-1 (meter, datalogger, and web server), 30-channel multi-circuit smart energy meter designed for high-accuracy energy monitoring applications. It is natively compatible with up to 3-phase 277/480 Vac and 6900 A (higher voltages with optional voltage sensors). Each unit is its own data logger that stores up to 64 data points for the lifetime of the hardware, and the user can access data as granular as 1-second for the most recent hour of recording.

The embedded web server allows the user to connect to the interface over the internet or on a local area network. Access your meter data (at no additional cost) using the user interface, or with other systems using Modbus (RTU or TCP), BACnet (IP or MS/TP), as well as the web-based JSON and XML API. In addition, the eGauge meter can read and log data from remote Modbus RTU and TCP devices.

Features

  • Measures electric AC or DC power on up to 30 circuits

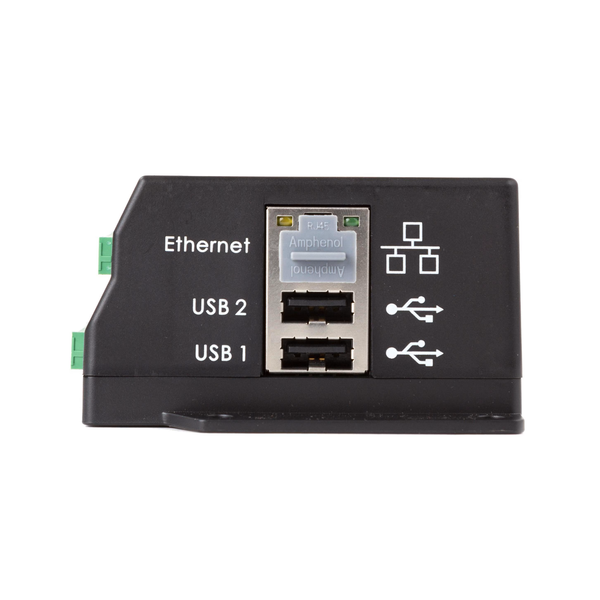

  • 2 USB Inputs
  • LCD Screen
  • DC Voltage port

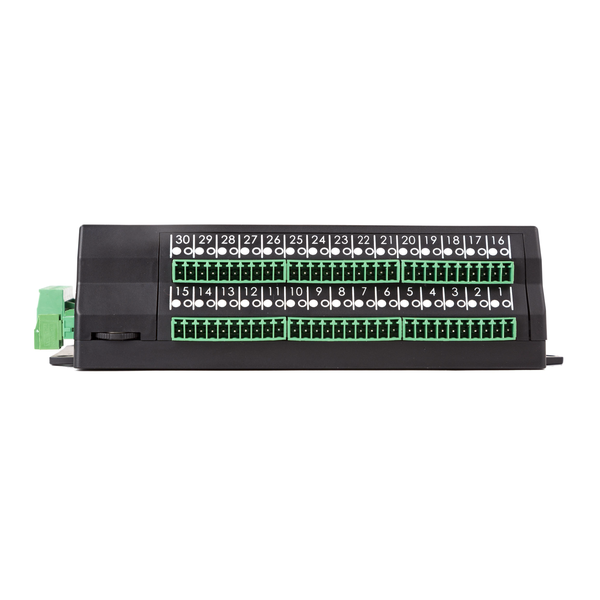

  • 30 Sensor Inputs
  • Ethernet Communication
  • WiFi and Cellular communication (using additional hardware)
  • Building-demand/consumption recording
  • Renewable energy production (e.g., PV solar, wind)
  • Individual appliances, such as geothermal pumps, HVAC, refrigerator
  • Supports wide range of current transformers (CTs) to accommodate virtually any size load
  • Built-in web server
  • Fully web-configurable
  • Built-in solid-state memory
  • Product lifetime data storage
  • Internet-enabled but can also operate autonomously without Internet connection
  • Free life-time firmware upgrades
  • No service contracts
  • No batteries
  • Windows, Mac, Linux, & smart-phone compatible
  • For residential, commercial, municipal, and industrial use
  • BACnet IP and MS/TP compatible
  • Modbus TCP and RTU communication
  • FCC and UL-61010 compliant
  • Lead-free and RoHS-compliant
  • Made in the USA

Measurement

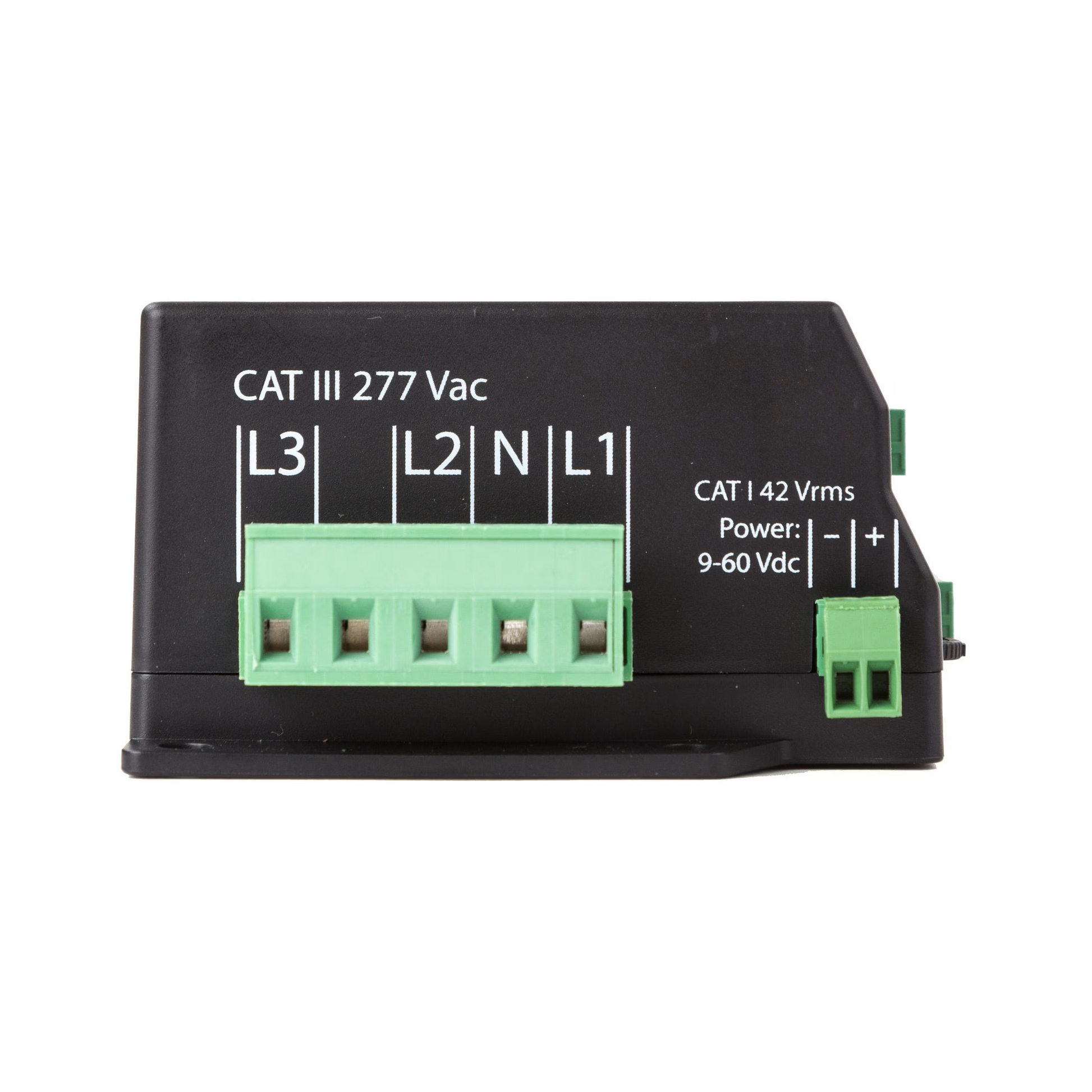

AC Voltage
L1: 85-277 Vrms
L2: 0-277 Vrms
L3: 0-277 Vrms

DC Voltage
42 Vrms
Power: 9-60 Vdc
Measurement: +/-60 Vdc

Current
30 channels
5-6900A max per channel
Isolated inputs

Frequency
50 or 60 Hz

Logging Values
V, A, W, Wh, Hz, VA, VAr, THD, deg

Power Draw
12W max, 2W typical

Environmental

Operating Temperature
-30 to 70 deg C (-22 to 158 F)

Max Altitude
4000m (13,123ft)

Max Humidity
80% up to 31 deg C

Measurement Category
Overvoltage Category III

Location
Open type indoor device

Pollution Degree
2

Data Logger Capacity

Register Count
64 (data storage points)

Granularity (duration/avg)
1 hour/1 second
1 year/1 minute
10 yrs/15 minute
Device Lifetime/1 Day

Safety and Regulatory

Safety
IEC/UL 61010-1 Ed. 3.0 B:2010

CE
IEC 61000-6-1 Ed. 3.0 B:2016
IEC 61000-6-3 Ed. 2.1 B:2011

FCC
FCC Title 47 CFR Part 15-Subpart B Class B

ICES
ICES-003 Information Technology Equipment Class B

Communication

Ethernet
IEEE 802.3 - LAN

User Interface

Compatible Browsers
Recent versions of:
Google Chrome
Firefox
Safari
Internet Explorer

Enclosure

Material
FRABS

Dimensions
17 x 8 x 4.6cm
(6.7 x 3.15 x 1.81in)

Weight
300g (0.66lbs)

Warranty

Standard
2 years

Extended
5 years
